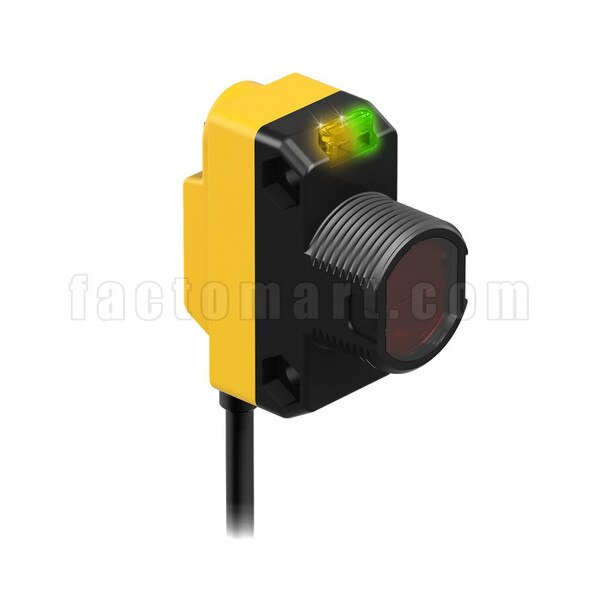

QS18LPTRIGKIT01 - BANNER - Photoelectric sensors Retro-Reflective Mode - Polarized - QS18 series

WORLD-BEAM: Polarized Retro. Range: 3.5 m; Input: 10-30 V dc. Outputs: Complementary PNP; 6 in Pigtail EURO-Style Pigtail QD Connector. Euro-style Quick Disconnect Cable. 4-Pin Straight Connector; 5 m (15 ft) in Length. Nickel-plated Brass Coupling Nut. Retroreflective Target: Rectangular -60x40 mm; Reflectivity Factor: 1.4. Max. Temp.= 50 degrees C. Plastic - Two Screw Holes for Mounting; Bracket: 2 Part Universal Rotating Stainless Steel; Allows Full Horizontal Movement. Allows Full Vertical Movement
