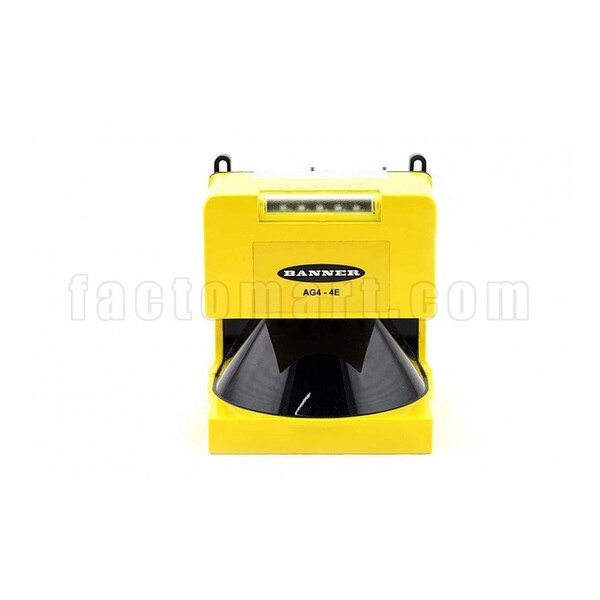

AG4-4E - BANNER - Safety Laser Scanner - 0.2 m to 4 m - Outputs 2 OSSD, 0.250 A max at 24 V dc

Personnel safety

laser scanner

• Parametrized via software
• Angular range max. 190°
• Angular resolution 0.36°
• Electrical connection via SUB‐D15 connector
• Connection cable AG4‐CPD15 (not incl. in delivery)
• 8 protective fields adjustable
• Laser class 1 acc.to EN 60825-1
• Resolution 30 mm at a distance of 1600 mm
• Resolution 70 mm at a distance of 4000 mm
• Minimum radiance factor 1.8% in protective field
• Protective field 0.2 … 4 m
• Warning field 0.2…15 m
• Scan field 0…50 m
• Minimum radiance factor 20% in warning field
• Operating voltage 17…28 VDC
• Protection class IP65
